Features

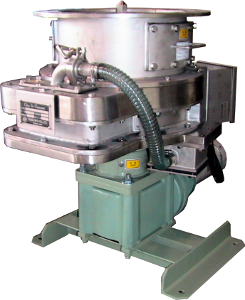

• GMEC is proud to offer our innovative CIC Type Feeder system for high accuracy feeding. Patented CIC helps simplify conventional complicated weighing systems.
• By using CIC, Charge Feeder ,Weighing Hopper and auxiliaries facilities become unnecessary, resulting in space saving.
  Since CIC has a high-resolution weighing load cell built into the feeder, the influence such as the contact between auxiliary facilities can be minimized. The load cell are not exposed since CIC has a weighing load cell built inside the feeder. Therefore, even if unintended load applied to the weighing hopper while feeding, there is free from system down.
  The CIC was developed based on a volumetric feeder, but constantly monitoring the powder weight in the unique weighing-cell, and adjusts the operation speed so that the supply amount always approaches the target value.
• Since CIC directly measures the powder weight actually feeding, highly accurate feed with little error is possible. Furthermore, since CIC can follow the change in the apparent specific gravity of the powder, it can provide a highly accurate feeding.
  Multi directional weighing feeder with individually-controlled feeding system!
• The CIC system can be built in ST type which realized multidirectional supply with one feeder. That has multiple weighing feeder units in one feeder.

“Comparative Flow : LOSS-IN-WEIGHT TYPE”

---

Point 1
Accurate and constant feeding gravimetry.No charge required, thus omits non weighing time during charge which the worst weak point of the loss-in weight system.

Point 2
Because real weight is measured in the supply mechanism, it is not necessary to measure the entire device. As a result, all the incidental equipment such as the measure hopper, charge devices, flexible joint and butterfly valves becomes unnecessary. And not only great reduction in costs but also a dramatic miniaturization is realized.

Point 3
It realizes highly accurate and wide-range control limits.
As so far the supply quantity becomes bulk, the weighing impliment itself upsizes and the load-cell capacity also became larger. But this new modle weighing implement measured only supply mechanism section, thus highly precise weighing is possible in a wide-range as measured weight is uniform regardless to the increase or decrease of feeding amount.

Point 4
No influence of external disturbance such as contact and vibration.
In comparison with the loss-in-weight severe installation condition, this device is needless for an anti-agitation measure. An installation condition is same as normal facilities, and of course the outdoor installment is possible, too.

Comparative Flow : INDIRECT LOSS-IN-WEIGHT TYPE

---

Adhesion weight will not be measured. Only the actual weight being calculate and control.

A conventional indirect weighing type implement such as powder flow meter and table scale always measured the weight of powder that adhered even somewhat in the device and adds continually as the supply quantity.
The point that the supply quantity is measured after all indirectly is the uncertainty with respect to precision problem.

Because the adhesion is not weighed as a load even it is somewhat generated in this device, the amount of actual supply is controlled by the operation.
And here it is one of the excellent features compare to the conventional indirect weighing type implement such as table scale,etc.

Comparative Flow : MULTI-DIRECTION FACILITIES

---

It realizes the actual weight measurement control continuously and independently even if it is multi-direction.

So far the indirect weighing type implement such as powder flow meter and table scale or the loss-in weight type weighing facilities divided into various series were used as continuous weighing control for the multi-direction.
However, there were problems such as the indirect weighing type which did not measure actual weight due to the influence of external disturbance and adhesion, installation space and the cost is very expensive for the facilities as the loss-in weight type were divided into various series.

This new model weighing implement performs independent actual weight measurement control continuously even if it is multi-direction.
Highly precise and it can realizes cost reduction and space-saving by simplifing the entire equipment.

Specification

	Feed rate	Motor Power	Weight
CIC-E100	0.4m3/h	0.4～0.75kW	250kg
CIC-E200	1.5m3/h	0.75～1.5kW	450kg
CIC-E300	3.5m3/h	0.75～2.2kW	700kg
CIC-E400	10m3/h	1.5～3.7kW	1200kg

	Feed rate	Motor Power		Weight
		Feeder Motor	Agitator Motor
CIC-ST50-2 ～ 4W	200L/h(×2 ～ 4W)	0.75kW	0.75kW	750 ～ 1300kg
CIC-ST100-2 ～ 4W	400L/h(×2 ～ 4W)	0.75kW	0.75kW	750 ～ 1300kg
CIC-ST200-2 ～ 4W	1.5m3/h(×2 ～ 4W)	0.75kW	1.5kW	1000 ～ 1400kg
CIC-ST300-2 ～ 4W	4m3/h(×2 ～ 4W)	1.5kW	2.2kW	1100 ～ 1500kg
CIC-ST400-2 ～ 4W	10m3/h(×2 ～ 4W)	1.5kW	2.2kW	1600 ～ 2200kg
