For the Collection of Powder Waste During Powder Introduction
Allows stable granulate introduction and conservation of the surrounding environment.
Features

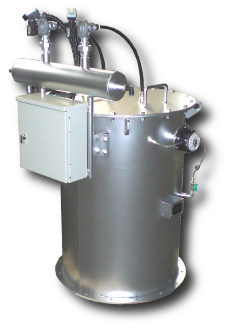

BMB (Reverse Cleaning Type)
A high-efficiency reverse cleaning air pulse removes powder from the filter, allowing stable introduction to the silo without clogging.
H (Aspiration Type)
An aspirating fan forcibly collects powder waste, preserving a hospitable work environment.

Specification
ろ過面積 Area of Filtering |
フィルター数 Filter Quantity |
電磁弁数 Solenoid Valve |
逆洗エアー量 Air Volume |
概略重量 Weight |
|
---|---|---|---|---|---|
BMB-6001 | 1.8m2 | 1 | 1 | 35NL/min | 35kg |
BMB-6004 | 7.2m2 | 4 | 2 | 65NL/min | 150kg |
BMB-6007 | 12.6m2 | 7 | 3 | 65NL/min | 300kg |
ろ過面積 Area of Filtering |
フィルター数 Filter Quantity |
ファン Fan |
概略重量 Weight |
||
---|---|---|---|---|---|
風量 Air Flow |
モータ容量 Motor Power |
||||
H-1 | 5.5m2 | 16 | 13m3/min | 0.75kW | 200kg |
H-2 | 8.0m2 | 20 | 25m3/min | 1.5kW | 250kg |
H-3 | 11m2 | 25 | 25m3/min | 1.5kW | 300kg |
H-4 | 18m2 | 36 | 40m3/min | 2.2kW | 350kg |
