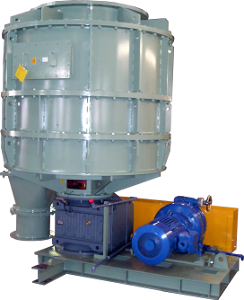

For Powders with High Liquidity
This machine provides stable feed without flushing due to its two-layered construction.
Features
- Using as a base the ELCF Type and its high-sealing properties, the feeding table is given two-layered construction to provide stable feed without flushing.
- Uses three types of feeding table, the set combinations of which allow an even higher level of feed accuracy based on the equipment and powder characteristics.
|
LFD Type |
Union Feeding Table List
|
中-大容量供給 Medium-Large Volume Feed |
小-中容量供給 Small-Medium Volume Feed |
連続供給 Continuous Feed |
|
|---|---|---|---|
|
上段供給盤 Upper Table |
リング式 Ring |
エンサークル式 Encircling |
エンサークル式 Encircling |
|
下段供給盤 Lower Table |
リング式 Ring |
エンサークル式 Encircling |
ステップ式 Step |
Specification
|
供給量（Ｍａｘ） Feed rate |
モーター出力 Motor Power |
概略重量 Weight |
|
|---|---|---|---|
| LF-100 | 600L/h | 0.75kW | 200kg |
| LF-200 | 2m3/h | 1.5kW | 350kg |
| LF-300 | 6m3/h | 2.2kW | 600kg |
| LF-400 | 13m3/h | 3.7kW | 1000kg |
| LF-500 | 30m3/h | 5.5kW | 1400kg |
| LF-600 | 60m3/h | 7.5kW | 2300kg |
| LF-700 | 160m3/h | 11kW | 3300kg |
|
供給量（Ｍａｘ） Feed rate |
モーター出力 Motor Power |
概略重量 Weight |
|
|---|---|---|---|
| LFD-100 | 600L/h | 0.4～0.75kW | 200kg |
| LFD-200 | 2m3/h | 0.75～1.5kW | 350kg |
| LFD-300 | 6m3/h | 2.2kW | 600kg |
| LFD-400 | 13m3/h | 2.2kW | 1000kg |
| LFD-500 | 30m3/h | 3.7kW | 1400kg |
Usage Examples
Pulverized Coal Feed 100T/H
Silo 100m3(Air Slide)

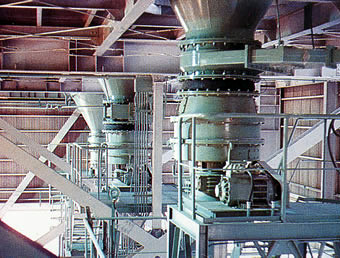

Model LF-R700
Fly Ash Feed 10T/H
Silo 100m3(Air Slide)

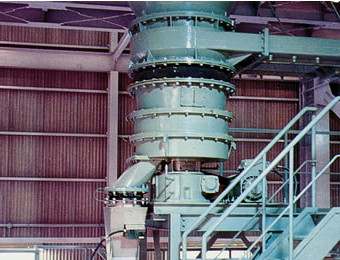

Model LF-R500
Slaked Lime Feed 3.6m3/H
Silo 200m3(Air Slide)

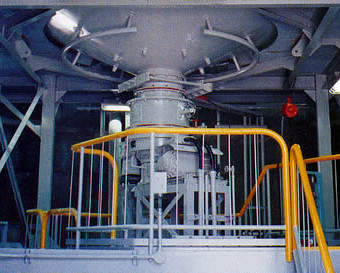

Model LF-T300
