T / RS Type Biomass Feeder



For Biomass and Recycling Materials

Allows the feed of amorphous materials prone to sticking and compaction.

Outline

The biomass feeder is a volumetric feeder capable of stable and volumetric feed to the next processing stage of biomass materials that are difficult to feed.

TAISEI has performed many storage and feed tests of various biomass materials (wood chips, RPF, cut tires, bagass, waste plastic).
With this information, we have resolved many issues affecting biomass material feed equipment’s that cause unstable feed to downstream equipment’s such as bridging in the storage hopper and sticking inside of the feeder.
By doing this, the machines have evolved into a more practical and reliable volumetric feeders.

Furthermore, we have various models with designs, capable of handling biomass materials with wide range of forms and characteristics.
We can offer a wide selection of feeders that meet with customer’s required specification.



Biomass Feeder

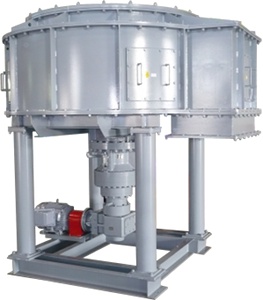

T TYPE

1.The actualization of continuous feeding without pulsation
As powders deposited into the feeding table are continuously scooped by the scraper, continuous feeding without pulsation is made possible.

2. Perform continuous feed without Material Sticking
Simple Construction allows to feed material continuously without material sticking.

3. Little Leftover Material allows Easy Cleaning
As this feeder uses a scraper to shovel through the interior of the feeder, there is little leftover material which allow easy cleaning.

4. Perform stable feed without altering the Shape of the Material
As this feeder is designed not to agitate the material, it is capable of stable feed without altering the shape of the material.

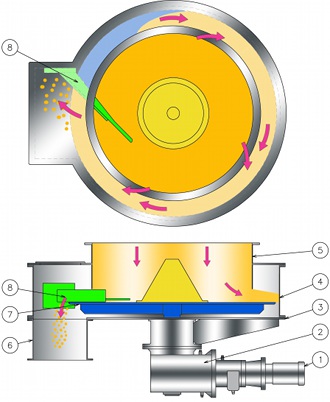

T TYPE

 1  モーター Motor
 2  減速機 Reduction Gear
 3  受盤 Bottom Pan
 4  円筒 Vessel
 5  投入口 Inlet Pipe
 6  シュート Chute
 7  供給盤 Feeding Table
 8  スクレーパー Scraper

T TYPE Structure

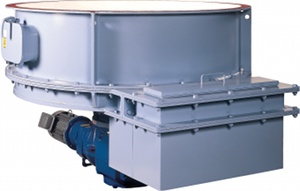

RS TYPE

1. Allows the feed of amorphous materials prone to sticking and compaction
The torque detection feature automatically directs the feeder to rotate normally or in reveres, protecting against sticking and compaction, and allowing stable operation.

2. No Bridging Inside of the Storage Hopper
By increasing the diameter of the feeder entrance it is possible to achieve stable feed without bridging.

3. Perform stable feed of Materials with Light Bulk Density.
As this feeder is designed to force material feeding through the exhaust, it is even capable of stably feed materials with light bulk density.

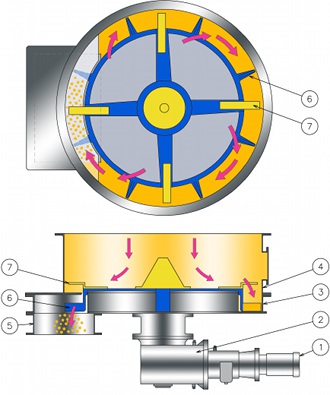

RS TYPE

 1  モーター Motor
 2  減速機 Reduction Gear
 3  受盤 Bottom Pan
 4  円筒 Vessel
 5  シュート Chute
 6  供給盤 Feeding Table
 7  撹拌羽根 Agitator

RS TYPE Structure


Specification
T TYPE 供給量(Max)
Feed rate
モーター出力
Motor Power
概略重量
Weight
T-10 30m3/h 2.2kW 1700kg
T-12 40m3/h 2.2kW 2400kg
T-15 50m3/h 5.5kW 3200kg
T-20 60m3/h 7.5kW 5000kg
T-24 80m3/h 11.0kW 7000kg
RS TYPE 供給量(Max)
Feed rate
モーター出力
Motor Power
概略重量
Weight
RS-10 10m3/h 2.2kW 1300kg
RS-12 15m3/h 3.7kW 1500kg
RS-14 20m3/h 3.7kW 1800kg
RS-16 25m3/h 5.5kW 2200kg
RS-18 35m3/h 5.5kW 2800kg
RS-20 45m3/h 7.5kW 3500kg
RS-24 60m3/h 7.5kW 4500kg

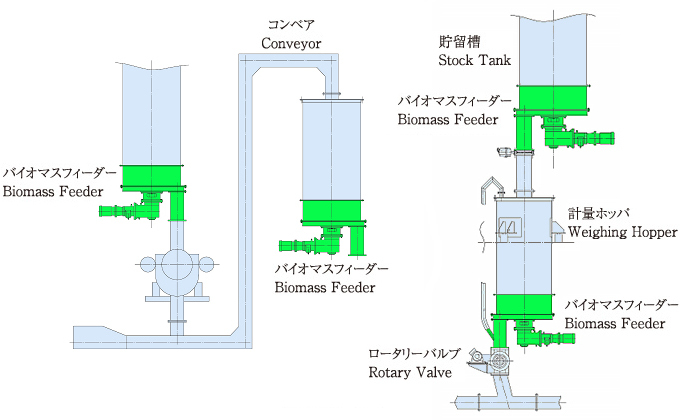

Usage Examples

Storage and Feeding System
Suitable for feeding material in recycling equipments.

Measuring-type Pneumatic-Transport System
Suitable for feeding fuel (waste plastic and paper) in incineration equipments.

Biomass Feeder Usage Examples



Raw material specimen


Crush tire

Bagasse

Refuse Paper & Plastic Fuel
Crush tire Bagasse Refuse Paper & Plastic Fuel
FeederMovie FeederMovie FeederMovie

Wood chip

Waste plastic

Fine wood chip
Wood chip Waste plastic Fine wood chip

Waste rubber

Waste plastic

Waste laminate
Waste rubber Waste plastic Waste laminate
